Great Circle and Rhumb Line Conversion Angle

To understand navigation, we must first define the two main trajectories that an aircraft follows:

• Great Circle: Represents the shortest distance between two points on the Earth's surface. However, due to meridian convergence, a great circle route constantly changes direction (true heading) as it progresses, except at the Equator or when flying directly north-south along a meridian.
• Rhumb Line: A line that crosses all meridians at the same angle, meaning it maintains a constant direction. Although it is easier to fly with a compass, the distance traveled is always greater than that of a great circle (except at the Equator or on north-south headings).

Key Differences and Curvature

On a polar stereographic projection chart, the Pole is the point of tangency. Here, meridians are straight lines radiating from the pole and parallels are concentric circles.

• Curvature: Rhumb lines appear as curves that are concave toward the pole, while great circles are considered nearly straight lines near the pole, although in reality they are slightly concave toward the pole in projections far from the center.
• Latitude: The higher the latitude (closer to the pole), the less apparent curvature of great circles on the chart.

The difference between the great circle route and the rhumb line is most notable when the Conversion Angle is greater.

Convergence and Conversion Angle

The angular difference between these two trajectories is governed by the Convergence of meridians.

• Convergence: The angle of inclination between two meridians at a given latitude. It is calculated as: $\text{Convergence} = \text{Change in Longitude} \times \sin(\text{Mean Latitude})$
• Conversion Angle (CA): The angular difference between the great circle direction and the rhumb line. It equals half the convergence. $\text{Conversion Angle} = \frac{1}{2} \times \text{Convergence}$

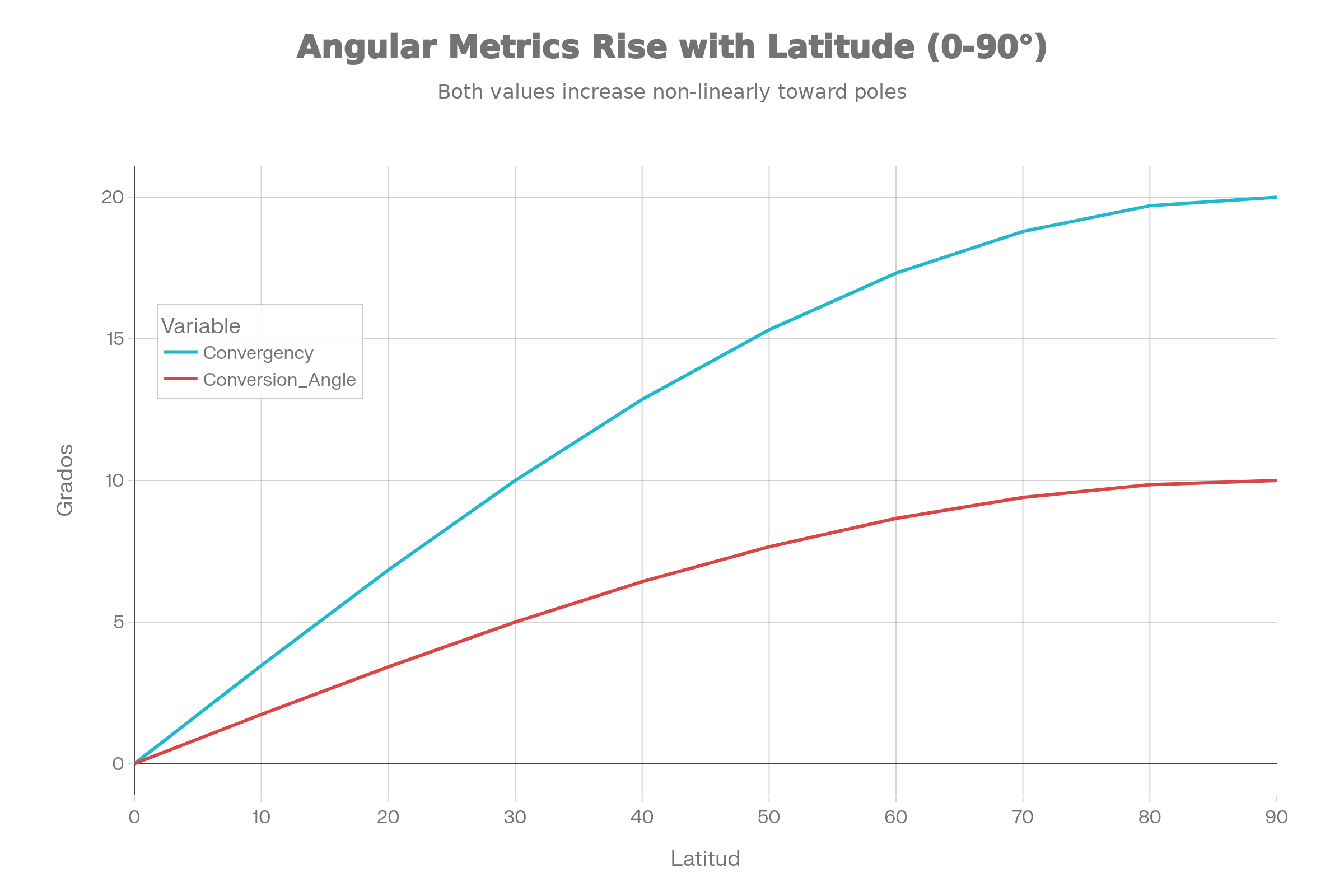

As shown in the following graph, both convergence and conversion angle increase significantly as we move away from the Equator toward the poles.

Therefore, the discrepancy between flying a great circle or a rhumb line is greater when:

1. The Change in Longitude increases.
2. The Mean Latitude increases.

Distance Variation

The general rule states that the difference in distance between a great circle route and a rhumb line route increases if:

• The latitude of the route increases.
• The difference in longitude between points increases.

For example, the distance difference between two points separated by 20° of longitude will be much greater at 60° latitude than at 20° latitude.

Practical Rule: DIID

To calculate headings and correct the trajectory between a great circle and a rhumb line, the mnemonic rule D-I-I-D (Decrease-Increase-Increase-Decrease) is used for the northern hemisphere:

• D (Decrease): When flying West, the great circle heading Decreases.
• I (Increase): When flying East, the great circle heading Increases.

Hemisphere	Direction	Great Circle Heading Behavior
North	West	Decreases (Decrease)
North	East	Increases (Increase)
South	West	Increases (Increase)
South	East	Decreases (Decrease)

When applying the conversion angle, remember that the Great Circle heading always "pulls" toward the pole compared to the Rhumb Line.
